Create the Hand Disk Project

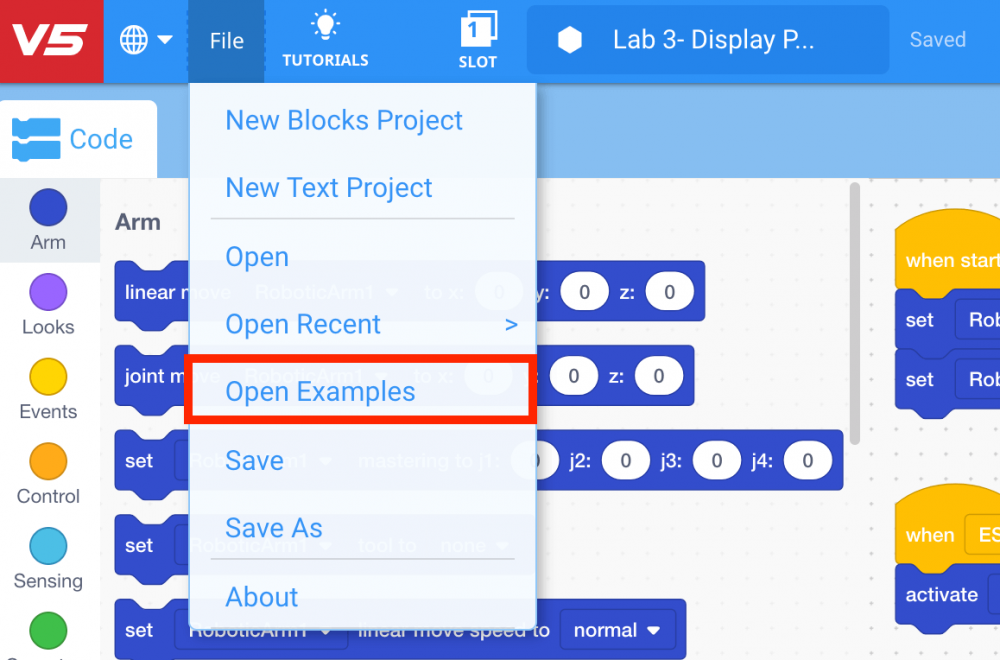

  1. From the Toolbar in VEXcode V5, select ‘File’ and then ‘Open Examples.’
    Open Examples

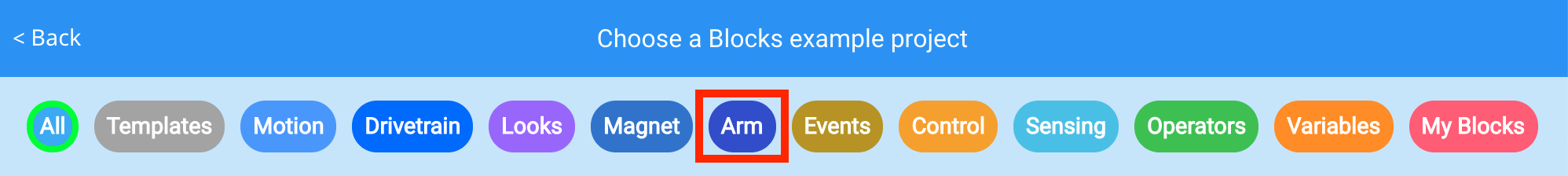

  2. Select the ‘Arm’ category.
    Arm category

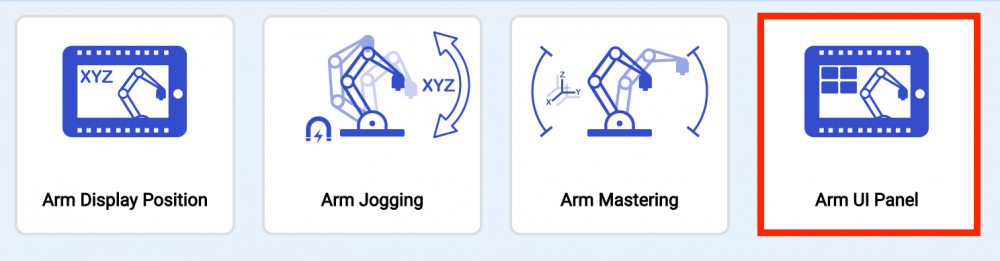

  3. Select the ‘Arm UI Panel’ example project.
    ARM UI Pannel

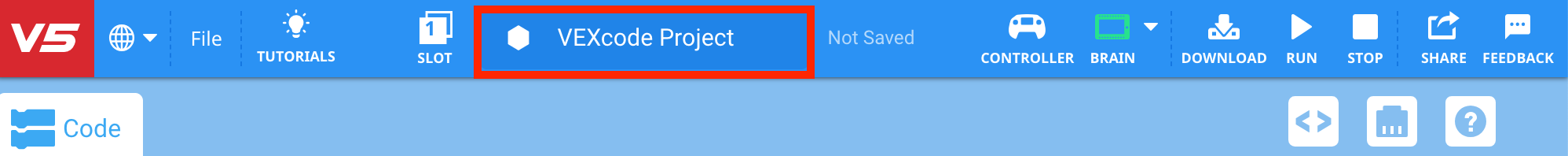

  4. Select the Project Name Box to name and save the project.
    Project Name Box

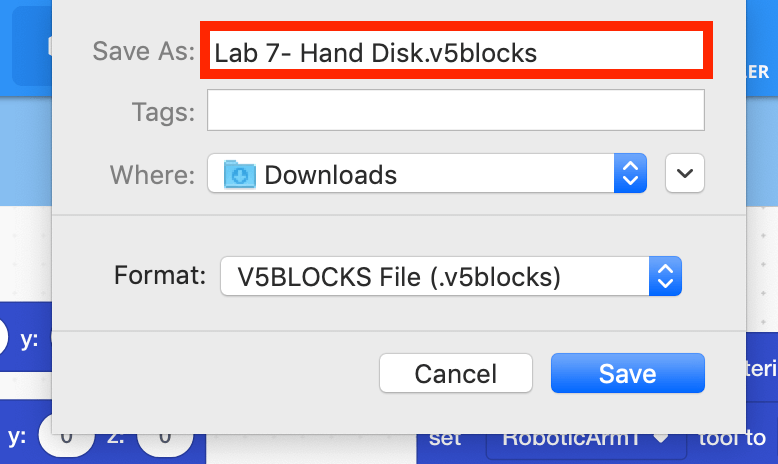

  5. Name the project ‘Lab 7- Hand Disk.’
    Hand Disk

    Note: for more information about saving, view the Save a Blocks Project (Chromebook, Windows, macOS) articles.


  6. The Toolbar will now display the project as ‘Saved.’ Any subsequent changes to the project will be automatically saved.
    saved
  7. Input the mastering values into the [Set mastering] block.
    Set Mastering Values
