Spin the Entry Conveyor

Now that the goals of the project have been outlined using comments, the blocks must now be added to divert the red disk to the Exit Conveyor.

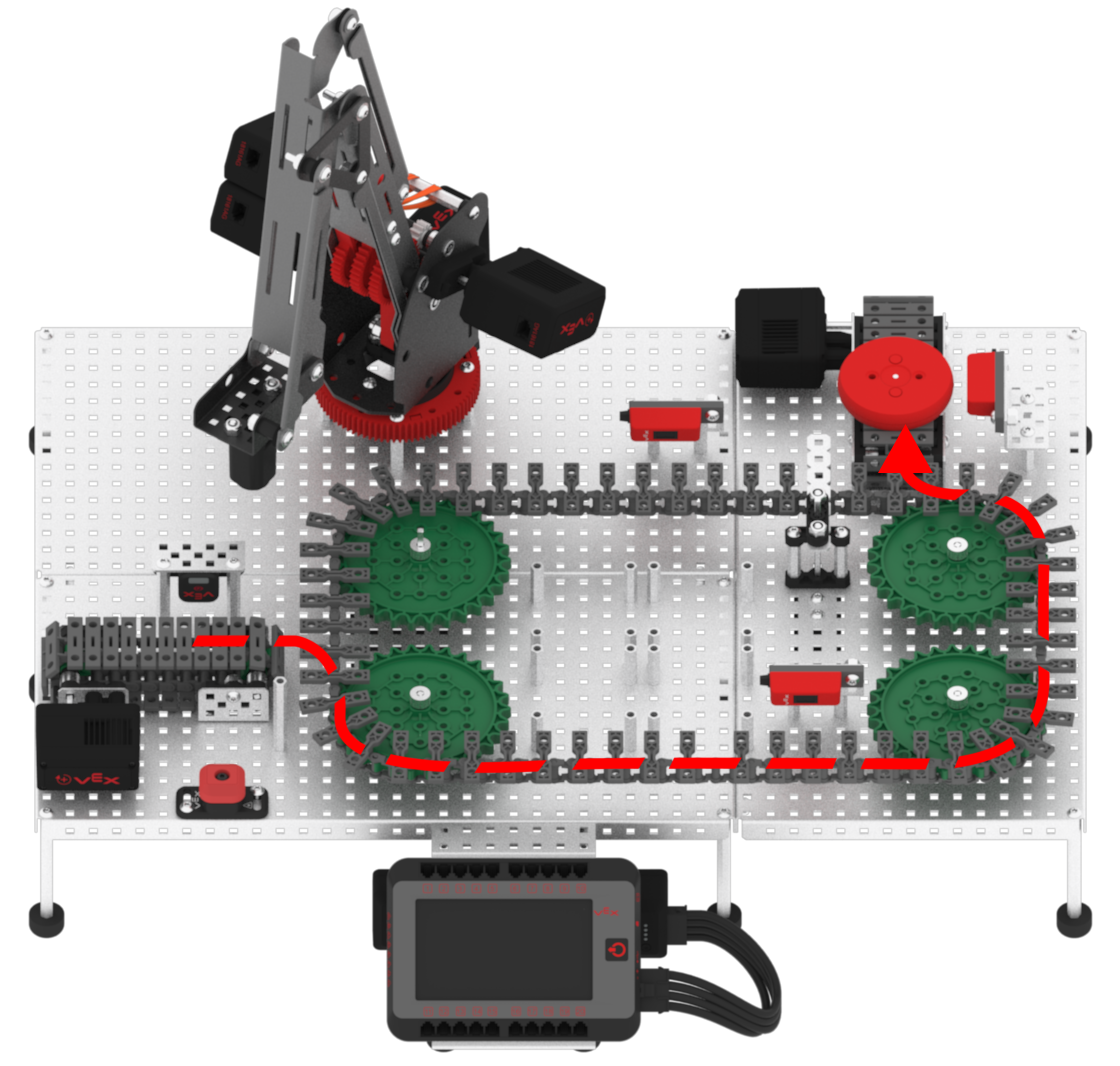

Red Path

Once a red disk is loaded, the Entry Conveyor will need to spin forward a certain amount of time and then stop to move the disk from the Entry Conveyor to the Transport Conveyor.

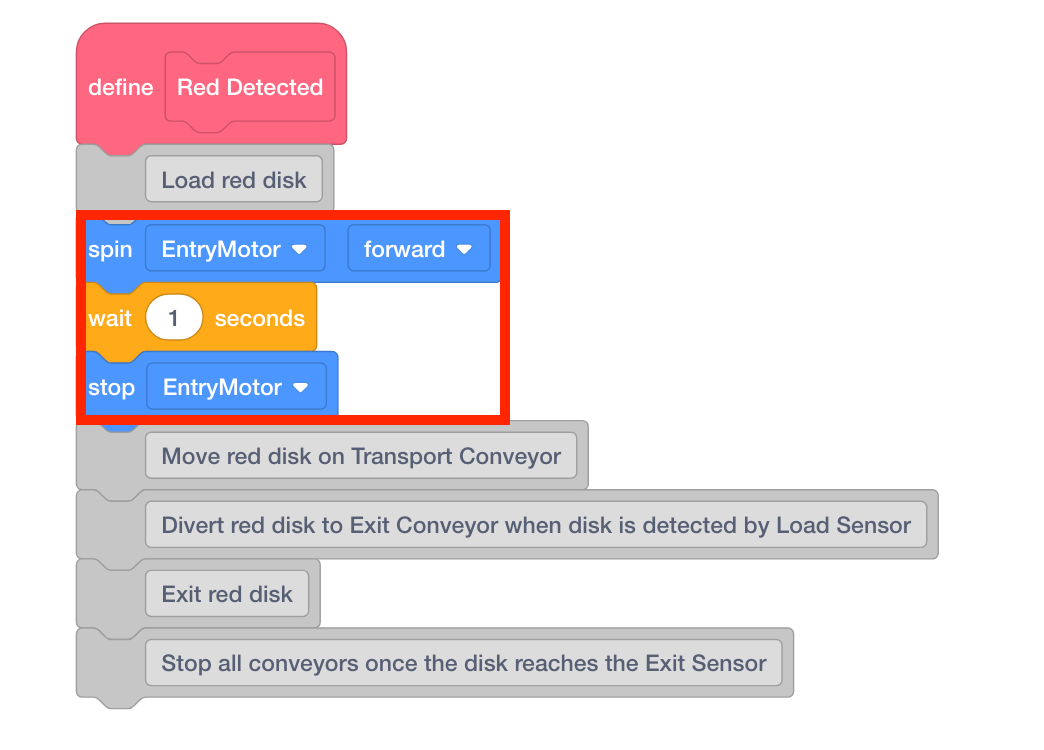

  1. Add [Spin], [Wait] and [Stop] blocks to the ‘Load red disk’ comment.
    Add [Spin], [Wait] and [Stop] blocks to the ‘Load red disk’ comment.

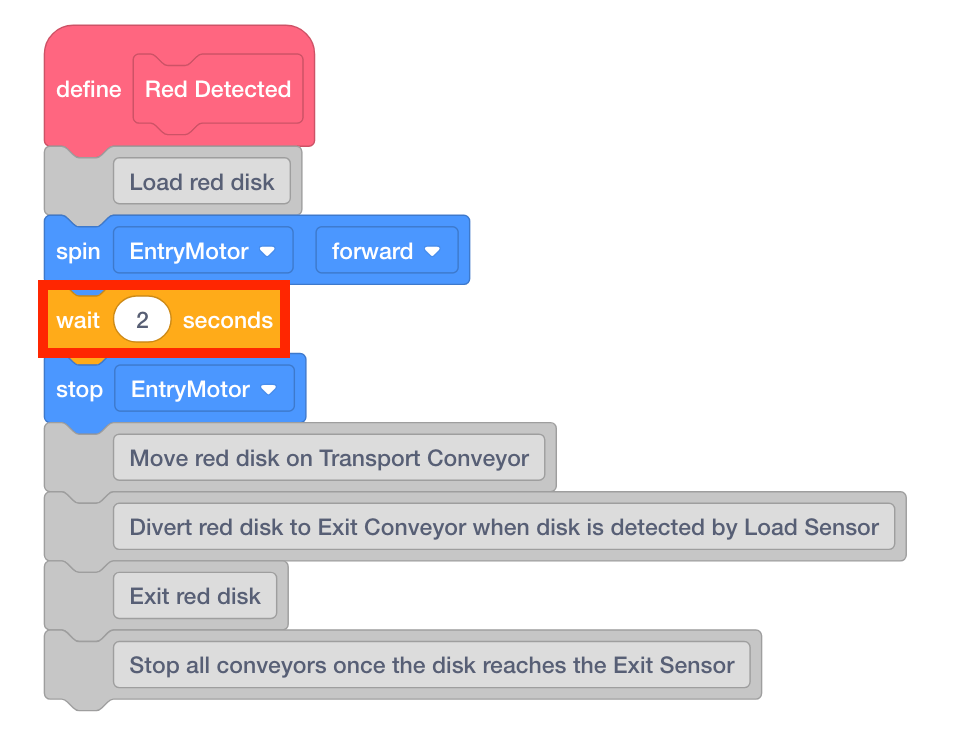

  2. Set the parameter of the [Wait] block to ‘2.’
    Set the parameter of the [Wait] block to ‘2.’
