Programming the Optical Sensor

Now that the Optical Sensor has been added to the robot configuration, it can be used in the project.

The [Set optical light] and [Set optical light power] blocks can be used to improve the consistency of the color detection by providing a consistent light source.

  1. Select and drag the [Set optical light] and [Set optical light power] blocks from the ‘Optical Sensing’ category in the Tool Box and attach it to the [Set Electromagnet duration] block. Set the parameter of the [Set optical light power] block to 100%.
    Select and drag the blocks.

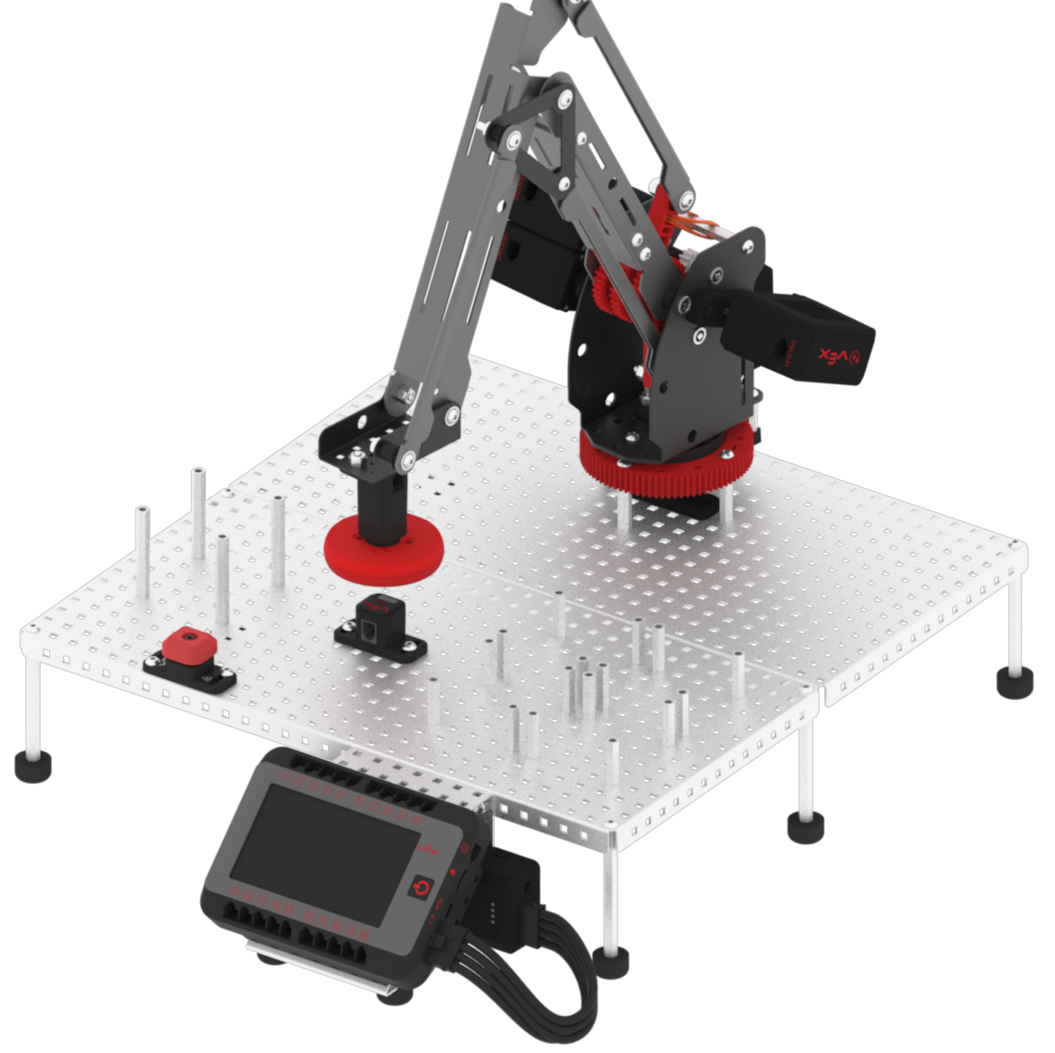

  2. After the arm mounted on the VEX V5 Workcell picks up a disk, it must move it above the Optical Sensor in order for the color to be detected.
    Sensing Red
  3. Select and drag the [Comment] block from the ‘Comments’ category in the Tool Box and attach it to the [Linear move] block. Change the comment to, ‘Move to Optical Sensor Location.’
    Select and drag the [Comment] block.
  4. Select and drag the [Linear move] block from the ‘Arm’ category in the Tool Box and attach it to the [Comment] block. Set the parameters of the [Linear move] block to the (x, y, z) coordinates of the location above the Optical Sensor.
    Select and drag the [Linear move] block.
